Hauptverkabelung

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP

Illustration Number: 08605

Finden Sie Ihr Teil

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP - HAUPTVERKABELUNG (08605)

Sehen Sie sich die Explosionszeichnung an, um das gesuchte Teil zu finden:
  • Sie können das Diagramm durch Ziehen neu positionieren
  • Sie können in das Diagramm hinein- und herauszoomen, indem Sie einen Bildlauf durchführen, es festhalten oder die and buttons
  • Sie können auf einen Hotspot 1 im Teilediagramm klicken, um das Teil in der Tabelle zu finden
Teil Schlüssel
IN
VORRÄTIG
AS
DEMNÄCHST EINTREFFEND
TO
Bestellen
PE
BITTE ANFRAGEN

Foto Teil Nr. Beschreibung Preis (jeweils) Lagerbestand
670107180 TÌRVERKLEIDUNG VORNE RECHTS KABELBAUM €114.53 Bestellen
Foto Teil Nr. Beschreibung Preis (jeweils) Lagerbestand
670032389 KABELBAUM FÌR DIE RECHTE VORDERTÌR €110.38 Bestellen
670035123 KABELBAUM FÌR DIE RECHTE VORDERTÌR €116.56 Bestellen
670035124 KABELBAUM FÌR DIE RECHTE VORDERTÌR €116.56 Bestellen
...and 3 more part variants. See table on right for more details.
Foto Teil Nr. Beschreibung Preis (jeweils) Lagerbestand
670033336 KABELBAUM HINTERE TÌR, RECHTE SEITE €122.81 Bestellen
670033337 KABELBAUM HINTERE TÌR, RECHTE SEITE €122.81 Bestellen
670033339 KABELBAUM HINTERE TÌR, RECHTE SEITE €133.12 Bestellen
...and 1 more part variants. See table on right for more details.
Foto Teil Nr. Beschreibung Preis (jeweils) Lagerbestand
670107184 KABELBAUM HINTERE TÌRVERKLEIDUNG, RECHTE SEITE €118.58 Bestellen
670107185 KABELBAUM HINTERE TÌRVERKLEIDUNG, RECHTE SEITE Erkundigen Bestellen
Foto Teil Nr. Beschreibung Preis (jeweils) Lagerbestand
670105409 ANSCHLUSS DER MITTELKONSOLE AN DIE VERKABELUNG €141.84 Bestellen
Foto Teil Nr. Beschreibung Preis (jeweils) Lagerbestand
670107174 LINKE SEITE TÌRVERKLEIDUNG KABELBAUM €114.53 Bestellen
Foto Teil Nr. Beschreibung Preis (jeweils) Lagerbestand
670032387 KABELBAUM FÌR DIE LINKE VORDERTÌR €118.69 Bestellen
670033345 KABELBAUM FÌR DIE LINKE VORDERTÌR €110.38 Bestellen
670033346 KABELBAUM FÌR DIE LINKE VORDERTÌR €122.81 Bestellen
...and 3 more part variants. See table on right for more details.
Foto Teil Nr. Beschreibung Preis (jeweils) Lagerbestand
670107188 KABELBAUM HINTERE TÌRVERKLEIDUNG LINKE SEITE €118.58 Bestellen
670107189 KABELBAUM HINTERE TÌRVERKLEIDUNG LINKE SEITE €122.81 Bestellen
Foto Teil Nr. Beschreibung Preis (jeweils) Lagerbestand
670033331 KABELBAUM LINKE SEITE FONDTÌR €122.81 Bestellen
670033332 KABELBAUM LINKE SEITE FONDTÌR €122.81 Bestellen
670033334 KABELBAUM LINKE SEITE FONDTÌR €133.12 Bestellen
...and 1 more part variants. See table on right for more details.
Foto Teil Nr. Beschreibung Preis (jeweils) Lagerbestand
670153702 RH BOOT WIRING HARNESS €110.38 Bestellen
670153704 RH BOOT WIRING HARNESS €110.38 Bestellen
670153704 RH BOOT WIRING HARNESS €110.38 Bestellen
...and 3 more part variants. See table on right for more details.
Foto Teil Nr. Beschreibung Preis (jeweils) Lagerbestand
670153696 LH BOOT WIRING HARNESS €110.38 Bestellen
670153699 LH BOOT WIRING HARNESS €110.38 Bestellen
Foto Teil Nr. Beschreibung Preis (jeweils) Lagerbestand
670032366 VERKABELUNG DER FESTSTELLBREMSE UND DES LUFTFEDERUNGSSYSTEMS €172.34 Bestellen
Foto Teil Nr. Beschreibung Preis (jeweils) Lagerbestand
670036969 RÌCKE €9.23 Bestellen
Foto Teil Nr. Beschreibung Preis (jeweils) Lagerbestand
675000662 SCHRAUBE €1.43 Bestellen
Foto Teil Nr. Beschreibung Preis (jeweils) Lagerbestand
670036722 RÌCKE €6.51 Bestellen
Alle ansehen

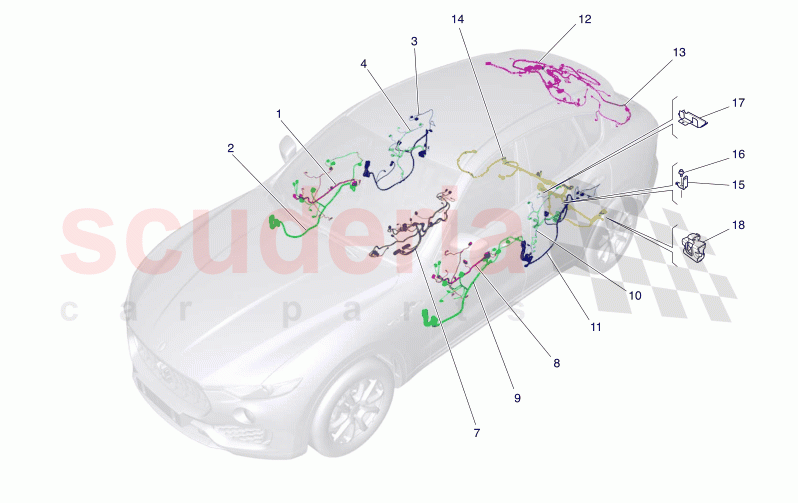

MAIN WIRING of Maserati Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP Diagram Zum Vergrößern antippen
# Details zum Teil Preis
(je)		 Menge auf
Diagramm		 In den Warenkorb
1 670107180
TÌRVERKLEIDUNG VORNE RECHTS KABELBAUM
EU CN US CD JP ME KO; 		€114.53 (11.9% off) 1
2 670032389
KABELBAUM FÌR DIE RECHTE VORDERTÌR
Available with: SOUND SYSTEM Not available with: HIGH PREMIUM SOUND SYSTEM, PREMIUM SOUND SYSTEM, SURROUND VIEW CAMERA SYSTEM, INCLUDES COURTESY LAMPS ON SIDE MIRRORS; EU CN US CD JP ME KO; 		€110.38 (11.9% off) 1
2 670035123
KABELBAUM FÌR DIE RECHTE VORDERTÌR
Available with: PREMIUM SOUND SYSTEM Not available with: HIGH PREMIUM SOUND SYSTEM, SOUND SYSTEM, SURROUND VIEW CAMERA SYSTEM, INCLUDES COURTESY LAMPS ON SIDE MIRRORS; EU CN US CD JP ME KO; 		€116.56 (11.9% off) 1
2 670035124
KABELBAUM FÌR DIE RECHTE VORDERTÌR
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 6112506; Available with: HIGH PREMIUM SOUND SYSTEM Not available with: PREMIUM SOUND SYSTEM, SOUND SYSTEM, SURROUND VIEW CAMERA SYSTEM, INCLUDES COURTESY LAMPS ON SIDE MIRRORS; EU CN US CD JP ME KO; 		€116.56 (11.9% off) 1
2 670033402
KABELBAUM FÌR DIE RECHTE VORDERTÌR
Available with: SOUND SYSTEM, SURROUND VIEW CAMERA SYSTEM, INCLUDES COURTESY LAMPS ON SIDE MIRRORS Not available with: HIGH PREMIUM SOUND SYSTEM, PREMIUM SOUND SYSTEM; EU CN US CD JP ME KO; 		€124.85 (11.9% off) 1
2 670033403
KABELBAUM FÌR DIE RECHTE VORDERTÌR
Available with: PREMIUM SOUND SYSTEM, SURROUND VIEW CAMERA SYSTEM, INCLUDES COURTESY LAMPS ON SIDE MIRRORS Not available with: HIGH PREMIUM SOUND SYSTEM, SOUND SYSTEM; EU CN US CD JP ME KO; 		€116.56 (11.9% off) 1
2 670033404
KABELBAUM FÌR DIE RECHTE VORDERTÌR
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 6112506; Available with: HIGH PREMIUM SOUND SYSTEM, SURROUND VIEW CAMERA SYSTEM, INCLUDES COURTESY LAMPS ON SIDE MIRRORS Not available with: PREMIUM SOUND SYSTEM, SOUND SYSTEM; EU CN US CD JP ME KO; 		€124.85 (11.9% off) 1
3 670033336
KABELBAUM HINTERE TÌR, RECHTE SEITE
Not available with: HIGH PREMIUM SOUND SYSTEM, REAR SOLAR PROTECTIVE SHADES; 		€122.81 (11.9% off) 1
3 670033337
KABELBAUM HINTERE TÌR, RECHTE SEITE
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 6112506; Available with: HIGH PREMIUM SOUND SYSTEM Not available with: REAR SOLAR PROTECTIVE SHADES, PREMIUM SOUND SYSTEM, SOUND SYSTEM; 		€122.81 (11.9% off) 1
3 670033339
KABELBAUM HINTERE TÌR, RECHTE SEITE
Available with: REAR SOLAR PROTECTIVE SHADES Not available with: HIGH PREMIUM SOUND SYSTEM; 		€133.12 (11.9% off) 1
3 670033340
KABELBAUM HINTERE TÌR, RECHTE SEITE
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 6112506; Available with: HIGH PREMIUM SOUND SYSTEM, REAR SOLAR PROTECTIVE SHADES Not available with: PREMIUM SOUND SYSTEM, SOUND SYSTEM; 		€122.81 (11.9% off) 1
4 670107184
KABELBAUM HINTERE TÌRVERKLEIDUNG, RECHTE SEITE
Available with: SOUND SYSTEM ; 		€118.58 (11.9% off) 1
4 670107185
KABELBAUM HINTERE TÌRVERKLEIDUNG, RECHTE SEITE
Not available with: SOUND SYSTEM; 		- 1 Enquire
7 670105409
ANSCHLUSS DER MITTELKONSOLE AN DIE VERKABELUNG 		€141.84 (11.9% off) 1
8 670107174
LINKE SEITE TÌRVERKLEIDUNG KABELBAUM
EU CN US CD JP ME KO; 		€114.53 (11.9% off) 1
9 670032387
KABELBAUM FÌR DIE LINKE VORDERTÌR
Available with: SOUND SYSTEM Not available with: HIGH PREMIUM SOUND SYSTEM, PREMIUM SOUND SYSTEM, SURROUND VIEW CAMERA SYSTEM, INCLUDES COURTESY LAMPS ON SIDE MIRRORS; EU CN US CD JP ME KO; 		€118.69 (11.9% off) 1
9 670033345
KABELBAUM FÌR DIE LINKE VORDERTÌR
Available with: PREMIUM SOUND SYSTEM Not available with: HIGH PREMIUM SOUND SYSTEM, SOUND SYSTEM, SURROUND VIEW CAMERA SYSTEM, INCLUDES COURTESY LAMPS ON SIDE MIRRORS; EU CN US CD JP ME KO; 		€110.38 (11.9% off) 1
9 670033346
KABELBAUM FÌR DIE LINKE VORDERTÌR
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 6112506; Available with: HIGH PREMIUM SOUND SYSTEM Not available with: PREMIUM SOUND SYSTEM, SOUND SYSTEM, SURROUND VIEW CAMERA SYSTEM, INCLUDES COURTESY LAMPS ON SIDE MIRRORS; EU CN US CD JP ME KO; 		€122.81 (11.9% off) 1
9 670035120
KABELBAUM FÌR DIE LINKE VORDERTÌR
Available with: SOUND SYSTEM, SURROUND VIEW CAMERA SYSTEM, INCLUDES COURTESY LAMPS ON SIDE MIRRORS Not available with: HIGH PREMIUM SOUND SYSTEM, PREMIUM SOUND SYSTEM; EU CN US CD JP ME KO; 		€124.85 (11.9% off) 1
9 670035121
KABELBAUM FÌR DIE LINKE VORDERTÌR
Available with: PREMIUM SOUND SYSTEM, SURROUND VIEW CAMERA SYSTEM, INCLUDES COURTESY LAMPS ON SIDE MIRRORS Not available with: HIGH PREMIUM SOUND SYSTEM, SOUND SYSTEM; EU CN US CD JP ME KO; 		€116.56 (11.9% off) 1
9 670035122
KABELBAUM FÌR DIE LINKE VORDERTÌR
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 6112506; Available with: HIGH PREMIUM SOUND SYSTEM, SURROUND VIEW CAMERA SYSTEM, INCLUDES COURTESY LAMPS ON SIDE MIRRORS Not available with: PREMIUM SOUND SYSTEM, SOUND SYSTEM; EU CN US CD JP ME KO; 		€124.85 (11.9% off) 1
10 670107188
KABELBAUM HINTERE TÌRVERKLEIDUNG LINKE SEITE
Available with: SOUND SYSTEM ; 		€118.58 (11.9% off) 1
10 670107189
KABELBAUM HINTERE TÌRVERKLEIDUNG LINKE SEITE
Not available with: SOUND SYSTEM; 		€122.81 (11.9% off) 1
11 670033331
KABELBAUM LINKE SEITE FONDTÌR
Not available with: HIGH PREMIUM SOUND SYSTEM, REAR SOLAR PROTECTIVE SHADES; 		€122.81 (11.9% off) 1
11 670033332
KABELBAUM LINKE SEITE FONDTÌR
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 6112506; Available with: HIGH PREMIUM SOUND SYSTEM Not available with: REAR SOLAR PROTECTIVE SHADES, PREMIUM SOUND SYSTEM, SOUND SYSTEM; 		€122.81 (11.9% off) 1
11 670033334
KABELBAUM LINKE SEITE FONDTÌR
Available with: REAR SOLAR PROTECTIVE SHADES Not available with: HIGH PREMIUM SOUND SYSTEM; 		€133.12 (11.9% off) 1
11 670033335
KABELBAUM LINKE SEITE FONDTÌR
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 6112506; Available with: HIGH PREMIUM SOUND SYSTEM, REAR SOLAR PROTECTIVE SHADES Not available with: PREMIUM SOUND SYSTEM, SOUND SYSTEM; 		€122.81 (11.9% off) 1
12 670153702
RH BOOT WIRING HARNESS
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6079467 - 6112506; Not available with: POWER LIFTGATE, REAR PARKING CAMERA WITH DYNAMIC GRIDLINES, SURROUND VIEW CAMERA SYSTEM, INCLUDES COURTESY LAMPS ON SIDE MIRRORS; 		€110.38 (11.9% off) 1
12 670153704
RH BOOT WIRING HARNESS
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6079467 - 6112506; Available with: REAR PARKING CAMERA WITH DYNAMIC GRIDLINES Not available with: POWER LIFTGATE, SURROUND VIEW CAMERA SYSTEM, INCLUDES COURTESY LAMPS ON SIDE MIRRORS; 		€110.38 (11.9% off) 1
12 670153704
RH BOOT WIRING HARNESS
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6079467 - 6112506; Available with: SURROUND VIEW CAMERA SYSTEM, INCLUDES COURTESY LAMPS ON SIDE MIRRORS Not available with: POWER LIFTGATE, REAR PARKING CAMERA WITH DYNAMIC GRIDLINES; 		€110.38 (11.9% off) 1
12 670153705
RH BOOT WIRING HARNESS
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6079467 - 99999999; Available with: POWER LIFTGATE Not available with: REAR PARKING CAMERA WITH DYNAMIC GRIDLINES, SURROUND VIEW CAMERA SYSTEM, INCLUDES COURTESY LAMPS ON SIDE MIRRORS; 		€110.38 (11.9% off) 1
12 670153707
RH BOOT WIRING HARNESS
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6079467 - 99999999; Available with: POWER LIFTGATE, REAR PARKING CAMERA WITH DYNAMIC GRIDLINES Not available with: SURROUND VIEW CAMERA SYSTEM, INCLUDES COURTESY LAMPS ON SIDE MIRRORS; 		€110.38 (11.9% off) 1
12 670153707
RH BOOT WIRING HARNESS
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6079467 - 99999999; Available with: POWER LIFTGATE, SURROUND VIEW CAMERA SYSTEM, INCLUDES COURTESY LAMPS ON SIDE MIRRORS Not available with: REAR PARKING CAMERA WITH DYNAMIC GRIDLINES; 		€110.38 (11.9% off) 1
13 670153696
LH BOOT WIRING HARNESS
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6079467 - 6112506; Not available with: POWER LIFTGATE, MASERATI TOUCH CONTROL PLUS WITH NAVIGATION (RUSSIA MARKET), TURKEY MARKET NAVIGATION SYSTEM WITH DISPLAY, EUROPEAN MARKET NAVIGATION SYSTEM WITH DIS 		€110.38 (11.9% off) 1
13 670153699
LH BOOT WIRING HARNESS
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6079467 - 99999999; Available with: POWER LIFTGATE Not available with: MASERATI TOUCH CONTROL PLUS WITH NAVIGATION (RUSSIA MARKET), TURKEY MARKET NAVIGATION SYSTEM WITH DISPLAY, EUROPEAN MARKET NAVIGATION 		€110.38 (11.9% off) 1
14 670032366
VERKABELUNG DER FESTSTELLBREMSE UND DES LUFTFEDERUNGSSYSTEMS
Not available with: PERFORMANCE BRAKE SYSTEM - FRONT 380 [mm], REAR 345 [mm]; 		€172.34 (11.9% off) 1
15 670036969
RÌCKE 		€9.23 2
16 675000662
SCHRAUBE 		€1.43 2
18 670036722
RÌCKE 		€6.51 1
